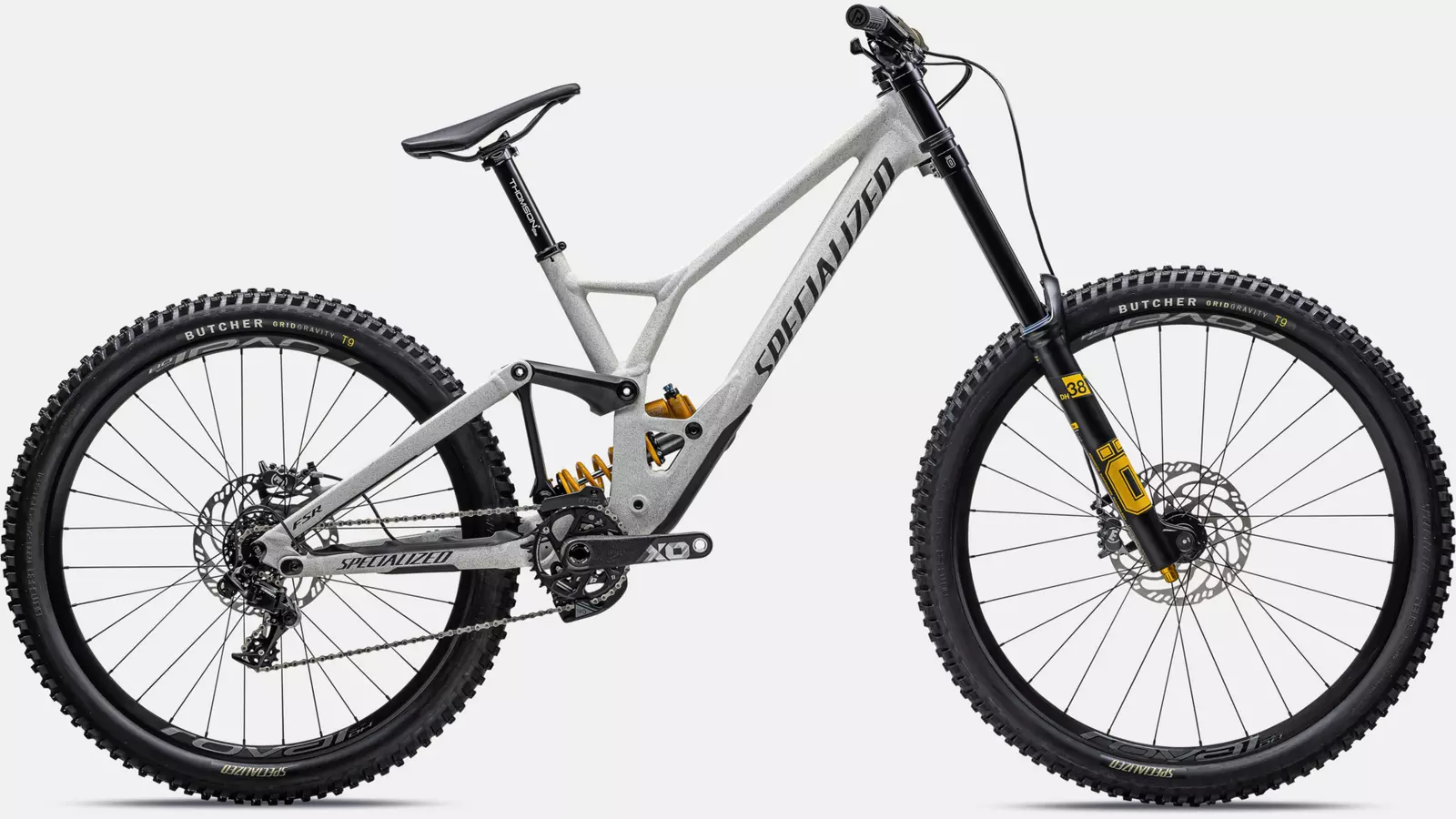

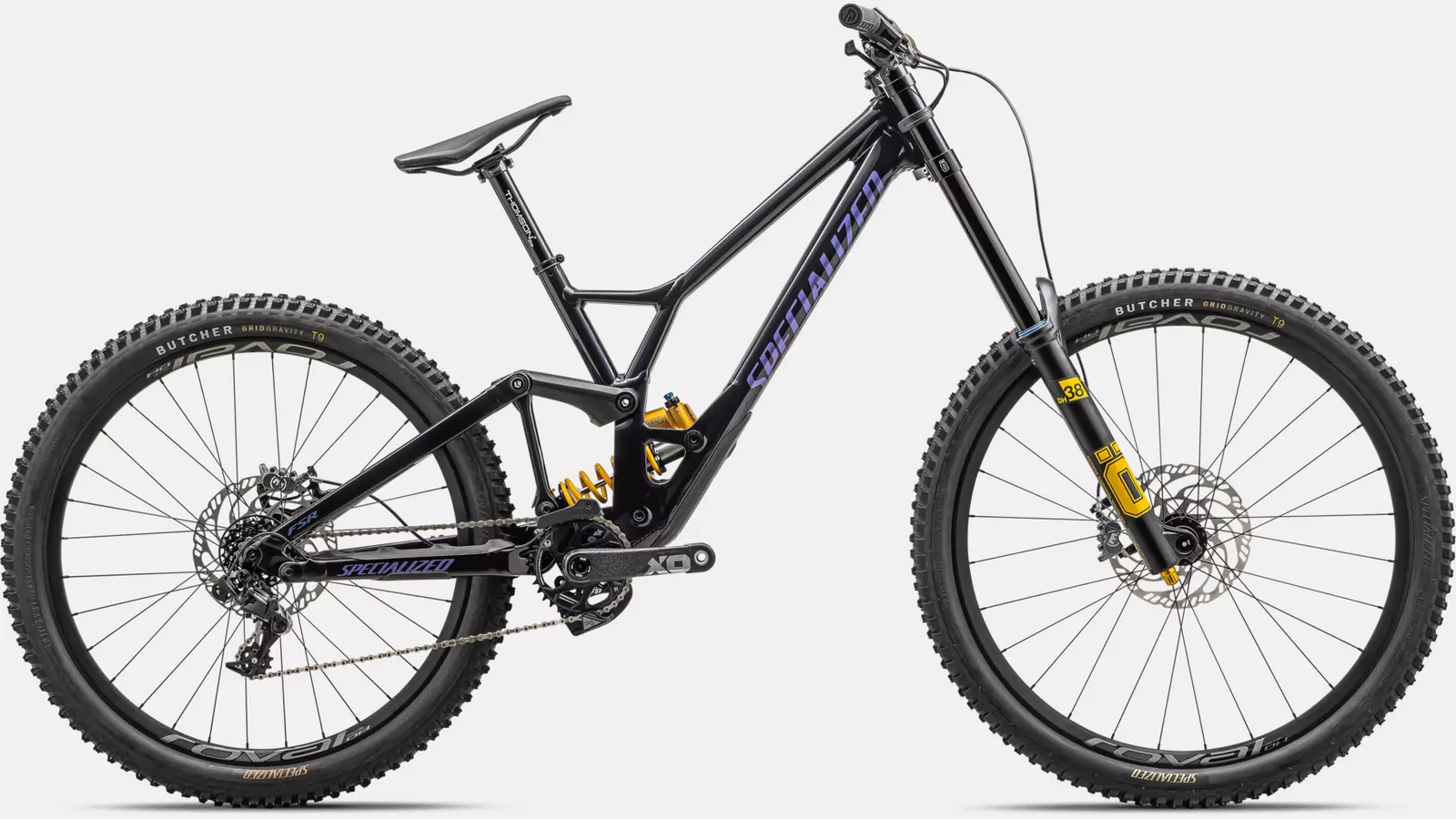

Rower Specialized Demo Race

40600,00

All-out speed has always been the Demo’s target, and with the Specialized Demo Race, it’s no different. Introducing a new flexible wheel-size frame design that allows riders to take advantage of a 29-inch front wheel and a 27.5-inch rear wheel, it’s a special blend that’s long been tested by World Champ Loïc Bruni looking for the perfect balance of traction and maneuverability, but only just green-lighted by the UCI this past year. Not that it stopped the Demo Race from racking up both the Downhill World Championship and overall World Cup titles in its very first season…


Guaranteed Safe CheckoutTrust
Zobacz informacje o produkcie

Rower Specialized Demo Race

All-out speed has always been the Demo’s target, and with the Demo Race, it’s no different. Introducing a new flexible wheel-size frame design that allows riders to take advantage of a 29-inch front wheel and a 27.5-inch rear wheel, it’s a special blend that’s long been tested by World Champ Loïc Bruni looking for the perfect balance of traction and maneuverability, but only just green-lighted by the UCI this past year. Not that it stopped the Demo Race from racking up both the Downhill World Championship and overall World Cup titles in its very first season…

Now, we’re offering that same winning combination straight out of the box, while an adjustable rear end that still allows you to change between 27.5 and 29-inch wheel sizes based on terrain and riding style while also adjusting for proper chainstay length and bottom bracket height.

Blazing fast on tough tracks, the Demo Race suspension design has been developed around a more rearward axle path that reduces rear-wheel hang-up, increasing speed instead.

Top-shelf suspension from Öhlins takes advantage of the most proven suspension kinematics on the World Cup circuit, and SRAM’s DH-specific X01 drivetrain has you covered from the start gate to finish line.

  • The Demo Race M5 alloy frame is fully optimized to take advantage of the traction benefits of a 29-inch front wheel and the increased manueverability of a 27.5-inch rear wheel while maintaiining the ability to change your rear wheel size to suit different terrain and riding styles with an adjustable rear end that ensures chainstay length and bottom-bracket height stay dialed no matter the hoop size.
  • The Öhlins TTX 22 M coil shock is designed to handle the most challenging World Cup Downhill tracks, offering external low speed compression and rebound adjustment while the Trunnion mount offers extra bushing overlap for increased durability.
  • With superb small bump tracking and the ability to soak up landings from even the heftiest drop-off, the Ohlins DH38 m.1 fork’s 200-millimeters of travel will give you smoother, faster, and more confident feeling runs than anything you’ve ridden before.

Specyfikacje techniczne

Wheels & Tires

Front Hub: Alloy, sealed cartridge bearings, 20x110mm, 28h

Rear Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5×2.3″

Front Tire: Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29×2.3″

Spokes: DT Swiss Competition, stainless steel, 14g

Rear Hub: DT Swiss 350, SRAM XD freehub, 6-bolt disc, high-low flange, sealed cartridge bearings, 12x148mm spacing, 32h

Rims: Roval 29″ Alloy DH, 28mm internal width, 28h front, 32h rear, tubeless ready

Inner Tubes: Standard, Presta Valve

Brakes

Front Brake: Magura MT7, 4-piston caliper, hydraulic disc, 203mm

Rear Brake: Magura MT7, 4-piston caliper, hydraulic disc, 203mm

Cockpit

Saddle: Body Geometry Henge DH, hollow titanium rails, 130mm

Grips: Deity Lockjaw

Stem: Renthal Integra35, Direct Mount Stem, 45mm length

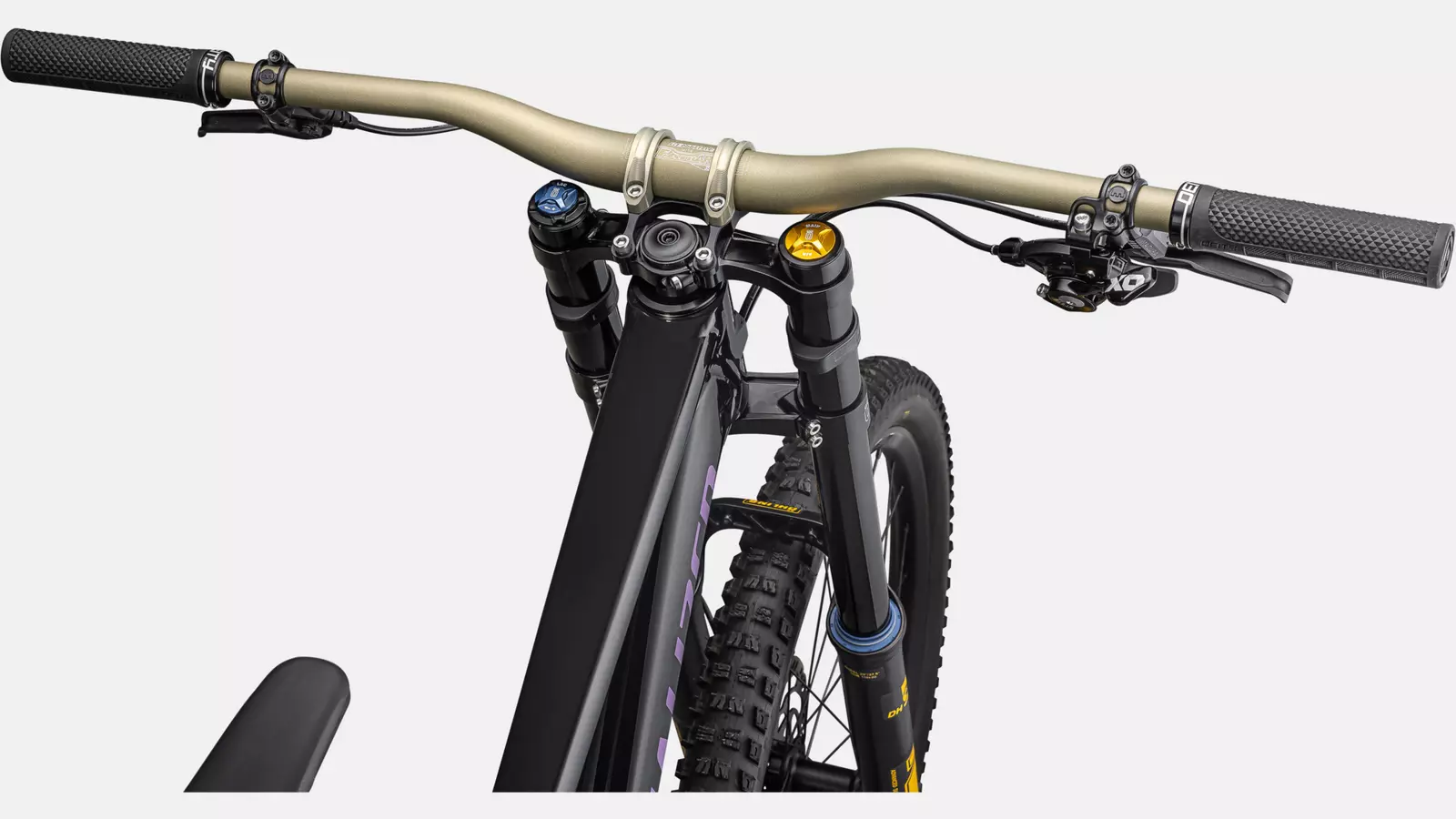

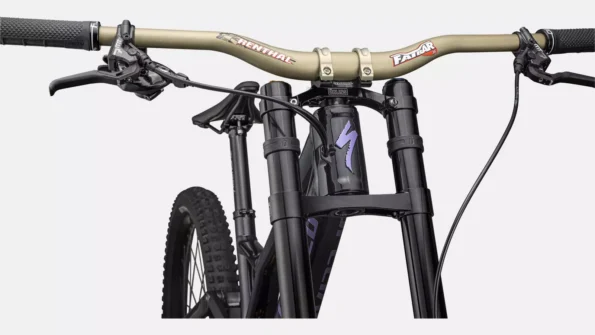

Handlebars: Renthal Fatbar35, 5-degree upsweep, 7-degree backsweep, 30mm rise, 800mm, 35.0mm

SeatPost: Thomson, alloy, straight, 12-degree clamp

Frameset

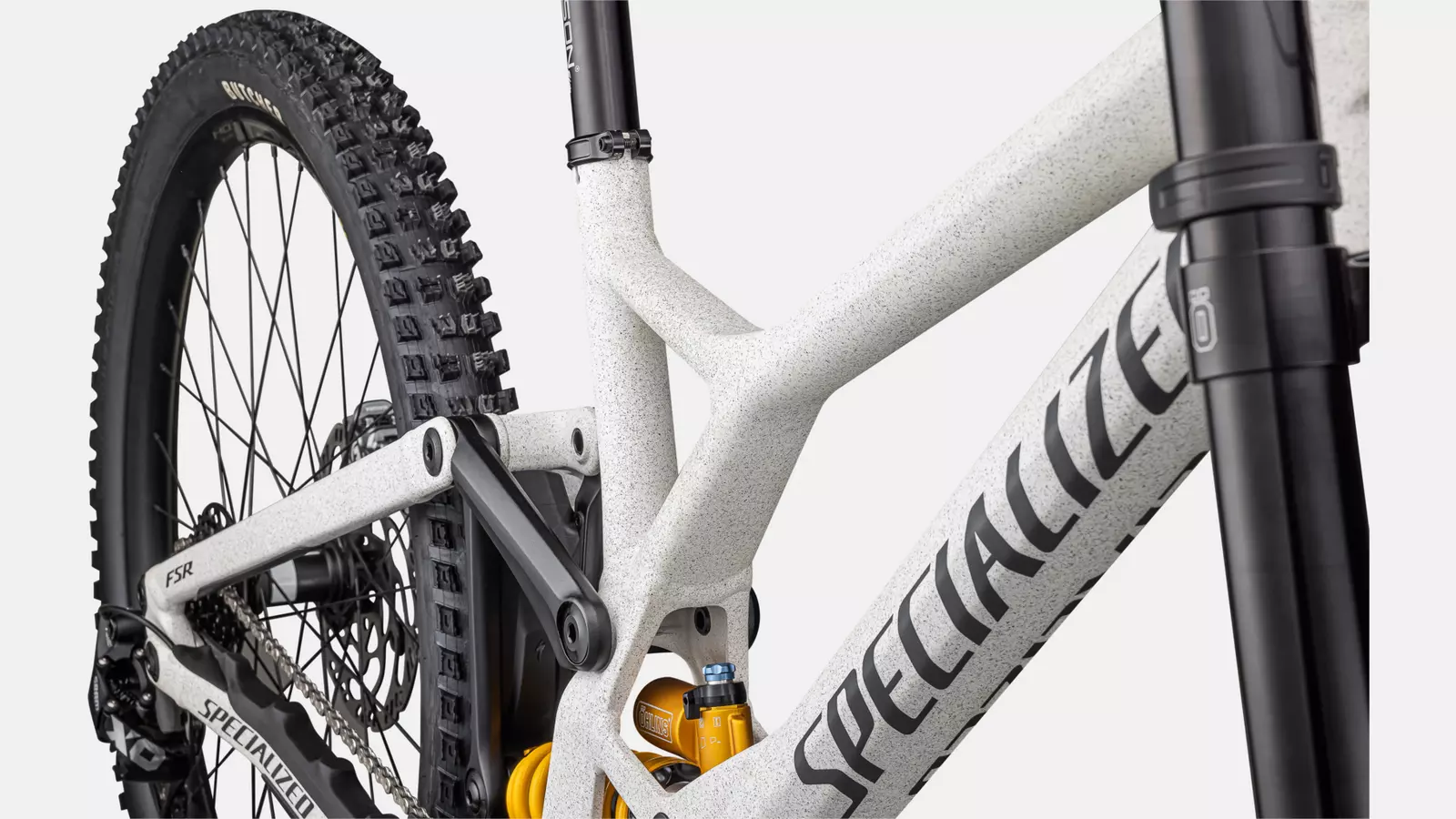

Frame: M5 alloy, Style-Specific DH Geometry, horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel

Seat Binder: Specialized Alloy, 34.9mm

Suspension

Fork: Öhlins DH38 M.1 29, TTX Twin Tube Damping, external low speed rebound adjust, external high and low speed compression adjustment, 20x110mm, 58mm offset, 200mm of travel

Rear Shock: Öhlins TTX 22 M Coil, external rebound adjust, external high and low speed compression adjustment, Trunnion mount, 225×75

Drivetrain

Bottom Bracket: SRAM DUB, 83mm

Cassette: SRAM X01 DH, 7-speed, 10-24t

Rear Derailleur: SRAM X01 DH, 7-speed, trigger

Crankset: SRAM X01 DH, DUB, carbon, Direct mount ring, 165mm

Shift Levers: SRAM X01 DH, trigger, 7-speed

Chain: Sram PC1130 w/ Powerlink, 11-speed

Chainrings: 34T

Weight

Weight: 17.46kg (38 lb, 7.9 oz)

Weight Size: S3





* Wagi są podane dla ram malowanych seryjnie, jak na zdjęciu. Rzeczywista waga może się różnić w zależności od koloru, rozmiaru ramy i różnych komponentów. Dane techniczne mogą ulec zmianie bez uprzedniego powiadomienia.

Geometria

S2 S3 S4
Crank Length 165mm 165mm 165mm
Handlebar Width 800mm 800mm 800mm
Stem Length 45mm 45mm 45mm
Saddle Width 130mm 130mm 130mm
Seatpost Length 367mm 367mm 367mm
Stack 632mm 632mm 632mm
Stack (29 mid) 629mm 629mm 629mm
Stack (27.5 mid) 635mm 635mm 635mm
Reach 426mm 446mm 466mm
Reach (29 mid) 430mm 450mm 470mm
Reach (27.5 mid) 423mm 443mm 463mm
Head-Tube Length 105mm 105mm 105mm
Head-Tube Angle 62.8° 62.8° 62.8°
Head-Tube Angle (29 mid) 63.2° 63.2° 63.2°
Head-Tube Angle (27.5 mid) 62.5° 62.5° 62.5°
B-B Height 350mm 350mm 350mm
B-B Height (29 mid) 355mm 355mm 355mm
B-B Height (27.5 mid) 345mm 345mm 345mm
B-B Drop 25mm 25mm 25mm
Trail 130mm 130mm 130mm
Trail (29 mid) 127mm 127mm 127mm
Trail (27.5 mid) 132mm 132mm 132mm
Fork Rake/Offset 56mm 56mm 56mm
Front-Center 801mm 821mm 841mm
Front-Center (29 mid) 801mm 821mm 841mm
Front-Center (27.5 mid) 801mm 821mm 841mm
Chain-Stay Length (29) 448mm 448mm 448mm
Chain-Stay Length (27.5) 438mm 438mm 438mm
Chain-Stay Length (mid) 443mm 443mm 443mm
Wheelbase (27.5) 1239mm 1259mm 1279mm
Wheelbase (29) 1249mm 1269mm 1289mm
Wheelbase (mid) 1244mm 1264mm 1284mm
Seat-Tube Length 394mm 420mm 420mm
Seat-Tube Angle 78.2° 76.8° 76.8°
Seat-Tube Angle (29 mid) 78.5° 77.1° 77.1°
Seat-Tube Angle (27.5 mid) 77.8° 76.4° 76.4°
