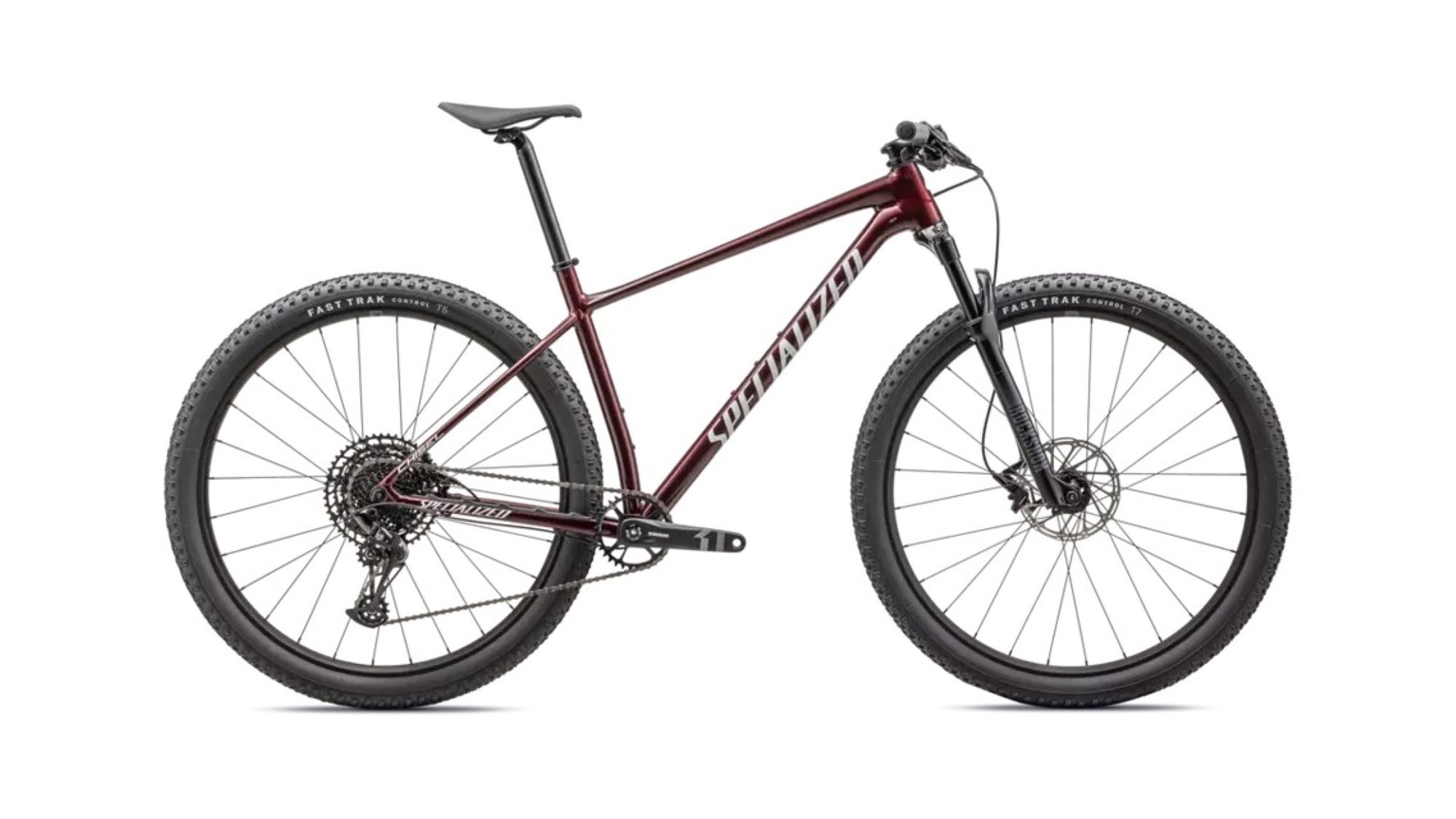

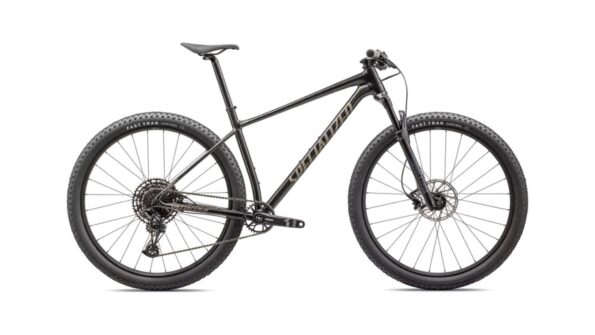

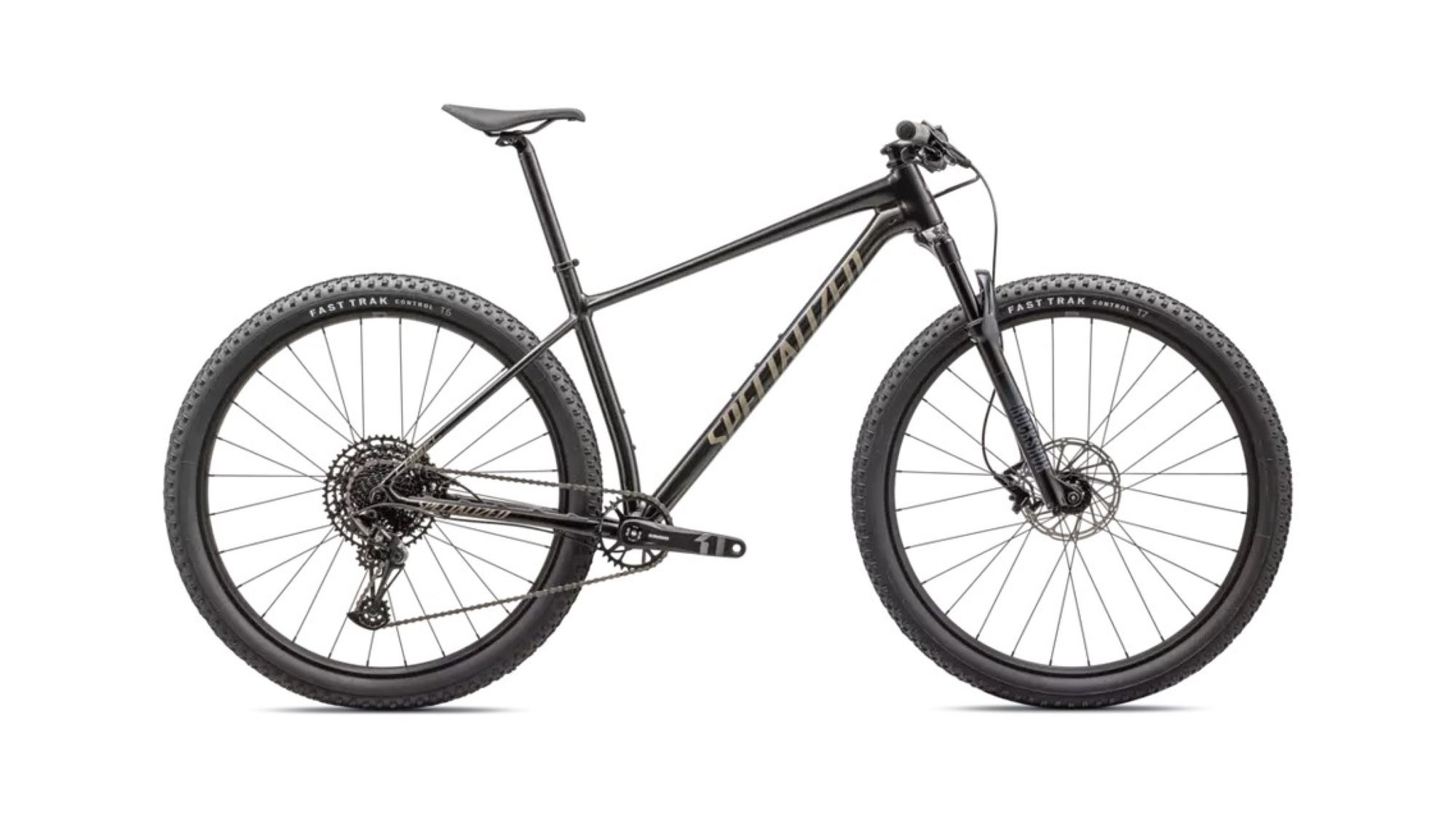

Rower Specialized Chisel Hardtail Comp
The all-new Chisel Comp is the perfect bike to begin your journey into XC riding and racing, with all of the features to get you to that elusive „”top step”” at a price that leaves some jingle jangle left over for race entries.
This Chisel comes dressed with SRAM’s crisp-shifting NX Eagle 1×12 drivetrain and powerful Level T hydraulic disc brakes, a 100mm (Size XS: 80mm) RockShox Judy Gold fork, and 25mm internal width alloy wheels wrapped in 2.35 Fast Track Control casing tires.
- We asked ourselves, “How do we bring pro-level performance down to a price more riders can afford?” D’Aluisio Smartweld Technology, that’s how. Smartweld allows us to create the most consistent, high-strength welds possible while taking full advantage of compliant, hydroformed alloy tubes. The result? One of the lightest alloy hardtail frames out there at 1,350g, which also features size-tuned stiffness.
- The new Chisel also houses all of the modern features that you expect from an XC bike, like Progressive XC Geometry with a 68-degree headtube angle and longer reach, internal cable routing, a threaded bottom bracket, boost spacing, 30.9mm dropper post compatibility, and 1x-only drivetrains.
Specyfikacje techniczne
Rama z widelcem
- Seat Binder: Specialized Alloy, 34.9mm
- Frame: Specialized D’Aluisio Smartweld M5 Alloy, Hydroformed tubes, Progressive XC Geometry, internal cable routing, BSA BB, 12x148mm spacing, 30.9mm Dropper post compatible
Zawieszenie
- Fork: RockShox Judy Gold, Motion Control damper, Solo Air, 42mm offset, 15x110mm thru-axle, 100mm of travel (XS – 80mm travel)
Hamulce
- Front Brake: SRAM Level T, hydraulic disc, 160mm/180mm Centerline Rotor
- Rear Brake: SRAM Level T, hydraulic disc, 160mm Centerline Rotor
Napęd
- Bottom Bracket: SRAM DUB, BSA 73mm, Threaded
- Rear Derailleur: SRAM NX Eagle, 12-speed
- Cassette: SRAM NX Eagle, 12-speed, 11-50t
- Shift Levers: SRAM NX Eagle, trigger, 12-speed
- Crankset: SRAM X1000 Eagle, DUB, 170/175mm 32T
- Chain: SRAM, SX Eagle, 12-speed
- Chainrings: 32T
Koła i opony
- Rear Hub: Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h
- Rims: Specialized Alloy, hookless, Tubeless ready, 25mm inner width
- Rear Tire: Specialized Fast Trak, Control Casing, T5 Compound, 29×2.35
- Front Tire: Specialized Fast Trak, Control Casing, T7 Compound, 29×2.35
- Front Hub: Specialized alloy front hub disc, sealed cardridge bearings, 6-bolt, 15x110mm thru-axle, 32h
- Spokes: Stainless, 14g
- Inner Tubes: Standard, Presta valve
Kokpit
- Saddle: Body Geometry Power Sport, steel rails
- Handlebars: Specialized Alloy XC minirise, double-butted alloy, 8-degree backsweep, 6-degree upsweep, 10mm rise, 31.8mm
- SeatPost: Specialized Alloy, Single Bolt, 30.9mm
- Grips: Specialized Trail Grips
- Stem: Specialized, 3D-forged alloy, 4-bolt, 7-degree rise
Szczegóły produktu
- Weight: 11.82kg (26 lb, .9 oz)
- Weight Size: LG
* Wagi są podane dla ram malowanych seryjnie, jak na zdjęciu. Rzeczywista waga może się różnić w zależności od koloru, rozmiaru ramy i różnych komponentów. Dane techniczne mogą ulec zmianie bez uprzedniego powiadomienia.
Geometria
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Crank Length | 165m | 170 | 175 | 175 | 175 |
| Handlebar Width | 750 | 750 | 750 | 750 | 750 |
| Stem Length | 60 | 60 | 70 | 70 | 70 |
| Saddle Width | 155 | 155 | 143 | 143 | 143 |
| Seatpost Length | 350 | 350 | 400 | 400 | 400 |
| Chainstay Length | 432 | 432 | 432 | 432 | 432 |
| Stack | 591 | 605 | 605 | 619 | 633 |
| Reach | 385 | 405 | 430 | 455 | 480 |
| Wheelbase | 1070 | 1099 | 1124 | 1154 | 1185 |
| Head Tube Length | 95 | 95 | 95 | 110 | 125 |
| Top Tube Length, Horizontal | 555 | 578 | 603 | 632 | 661 |
| Bike Standover Height | 732 | 762 | 792 | 816 | 847 |
| Head Tube Angle | 68 | 68 | 68 | 68 | 68 |
| BB Height | 304 | 309 | 309 | 309 | 309 |
| Seat Tube Length | 367 | 400 | 430 | 470 | 520 |
| BB Drop | 68 | 63 | 63 | 63 | 63 |
| Seat Tube Angle | 74 | 74 | 74 | 74 | 74 |
| Trail | 103 | 103 | 103 | 103 | 103 |
| Fork Length, Full | 486 | 506 | 506 | 506 | 506 |
| Fork Rake/Offset | 44 | 44 | 44 | 44 | 44 |
| Front Center | 647 | 674 | 699 | 730 | 760 |
